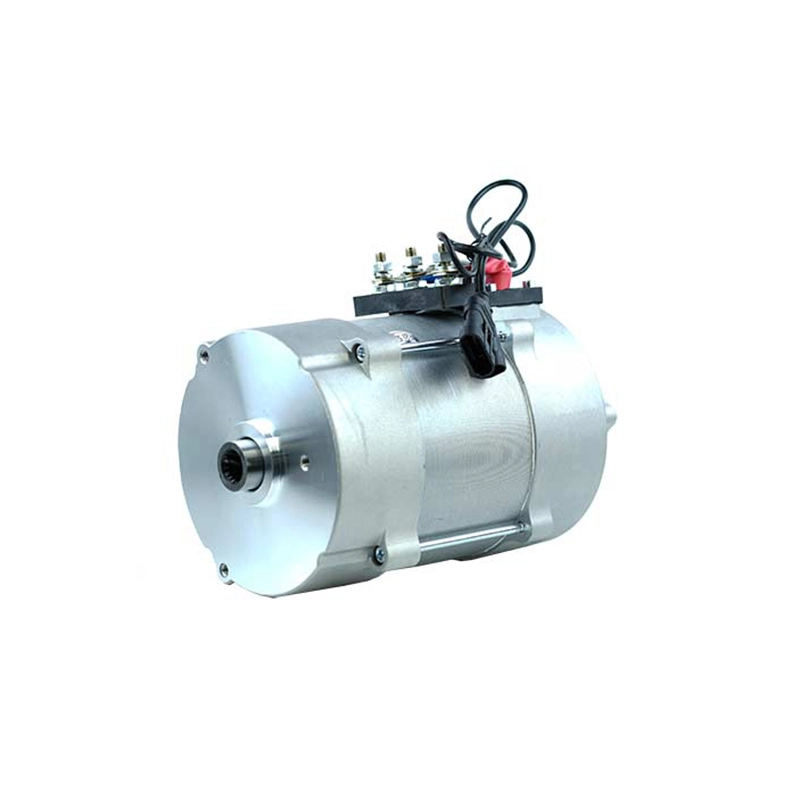

AC asynchronous motor 3/4/7/10/15kw

Application

Our company's AC asynchronous motor adopts our patented design concept and assembly technology. It has the characteristics of high efficiency and energy saving, stepless speed regulation, strong overload capacity, low maintenance cost, and high power density. It is widely used in various electric vehicles and drive system powered by AC low-voltage power supplies.

Features

1. No brush and commutator, simple structure, maintenance-free, high reliability, optional regenerative braking function.

2. Large starting torque and output torque, strong overload capacity, high efficiency and long continuous running time.

3. High power density, wide speed regulation range of constant power, and wide operating high-efficiency area.

4. Protection grade up to IP67, and the insulation class is H.

5. Equipped with reliable speed sensor and temperature sensor, it can realize precise speed control and overheat protection.

6. The installation interface and motor performance can be customized according to requirements.

7. The product has good consistency, low noise and vibration, high environmental adaptability and long service life.

8. High energy recovery efficiency (generally greater than 10-15%)

Main functions

AC asynchronous motor is an electric drive device that converts electrical energy into mechanical energy . It can easily drive various types of equipment to do high-speed movement through the control of the controller.

Model:

Rated power: 1.5 kw

Rated speed: 3000r

Rated torque: 4.8N.m

Rated voltage: 60V

Rated current: 30A

Peak current: 170A

Peak torque: 30N.m

Maximum speed: 6800r

Weight: 11kg

Application: for small passenger cars, 3-wheelers, etc.

Note: Design as required the rated voltage range: 48-72V, rated speed range: 3000r-4000r/min
