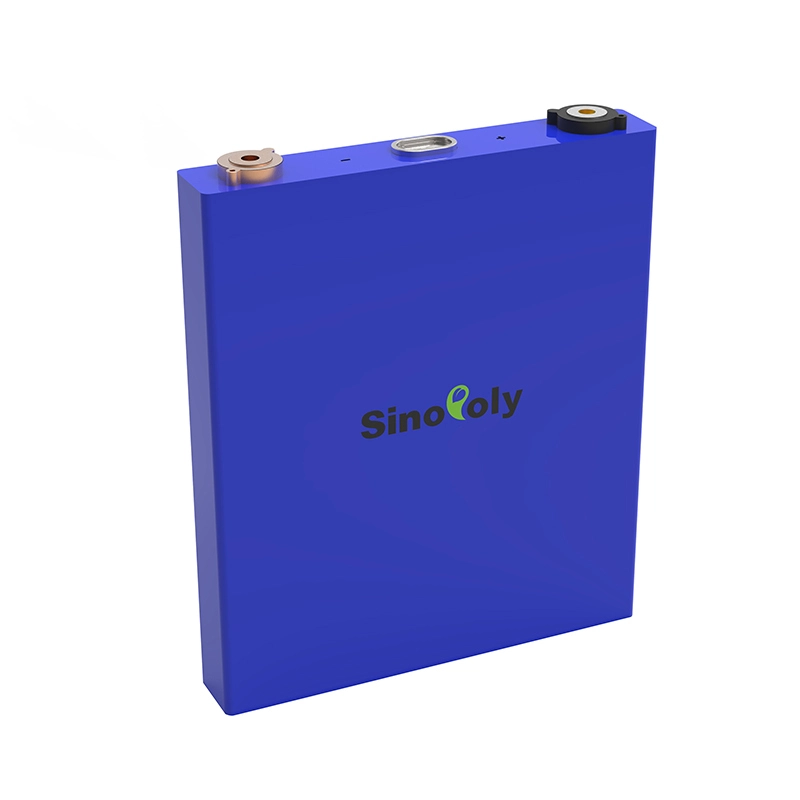

Sinopoly mining lithium battery cell 106Ah
| Size(L: W: H) | 140.2*24*163.0±0.5mm |
| Nominal capacity | 106Ah |
| Nominal voltage | 3.2V |
| Weight | 2.1Kg±0.1g |
| Maximum charging voltage | 3.65V (0℃≤T≤55℃) |
| Minimum discharge voltage | 2.5V (0℃＜T≤60℃) |
| 2.0V (-20℃≤T≤0℃) | |
| Energy density | ≥164Wh/kg (Mass energy density) |
| Rated power | 320W |
| AC internal resistance | ＜0.4mΩ (Fresh cell) |
| Cycle Life | ≥5000 (0.33C/0.33C,80%DOD@25℃) |
| Standard discharge current | 1C |
| Maximum continuous discharge current | 3C |
| Max.charge current | 1C |
