Product details of the tuk tuk electric car

Quick Overview

tuk tuk electric car comes in various design styles, perfectly blending the functionality and aesthetics. This product is tested before delivery to meet top-notch quality standards. The application prospects of this product become more and more extensive.

Product Description

The overall quality of tuk tuk electric car has been greatly improved through the optimization of the following details.

Application

The SP- Pony Q 51.2V100Ah 7.68KWh wall-mounted home energy storage system is suitable for family use, it can be a backup power in the event of a blackout, and for every house and especially those located in remote areas where the cost of utility is too high or facing issues with unstable or limited power supply.

Features

● Adopt LCD touch screen + battery management system to control, easy to operate;

● Support mobile APP control and monitoring performance for Android & IOS system;

● Max 6 units in parallel, capacity can be up to 92.16KWh;

● Off-grid, On-grid and Grid-tie operation modes for you to choose;

● Can equip with the inverter, with solar input and built-in MPPT solar controller;

● Multiple communication systems for RS485, Modbus WIFI, 4G;

● With high IP class IP65, more safety to use.

Device Parameters

No.	Item	General Parameter		Remark
1	Battery link	16S3P		16S3P-150Ah
2	Rated Capacity	Typical	150Ah	Standard discharge after Standard charge（package)
		Minimum	147Ah
3	Type/model	CJSL-7.68KWH
4	Rated capacity	7.68kWh
5	Rated voltage	51.2V DC
6	Voltage at end of Discharge	Lowest voltage for single cell is 2.7V，or total voltage is 43.2V		Discharge Cut-off Voltage
7	Recommended charging voltage by manufacturer	57.6V or 3.60V/any cell		Volta-meter (Serial*3.60V), Battery pack safe charging voltage
8	Internal Impedance	≤30mΩ		Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test
9	Standard charging current	100A		Charge at constant current 100A until voltage reaches 57.6V, then charge at constant voltage 57.6V till charge current is 10A
10	Max Charging Current(Icm)	115A		Ampere-meter, Maximum allowable continuous charging current of the battery pack
11	Upper limit charging voltage	58.4V or 3.65V/cell		Volta-meter (Serial*3.65V), Battery pack safe charging voltage
12	Standard discharging current	100A
13	Max continuous Discharging current	140A		Maximum continuous discharge current allowed by the battery pack
14	Discharge Cut-off voltage(Udo)	43.2V		Voltage of the battery when the discharge is stopped
15	Operation Temperature Range	Charge:0~55℃
		Discharge: -20~60℃
16	Single module Size	L:580mmH:830mmW:247mm		±3mm
17	APP	4G		optional
18	System weight	96Kg		Approx. 96kg(include bracket)

How To Use

GIF-1

GIF2

GIF3

Configuration List

NO.	name	Selection/Brand/Specification	Qty
1	the energy storage system	Pony-Q	1
2	DC output wire	1.5 meter	1
3	Inverter communication wire	2 meter	1
4	Parallel communication wire	1 meter	1
5	wall mount bracket	Domestic	1
6	mounting screws	1 set	1
7	Communication upgrade wire	1meter (Optional)	1
8	Inverter	Pony-Q(Optional)	1
9	Digital Version User Manual	Pony-Q	1

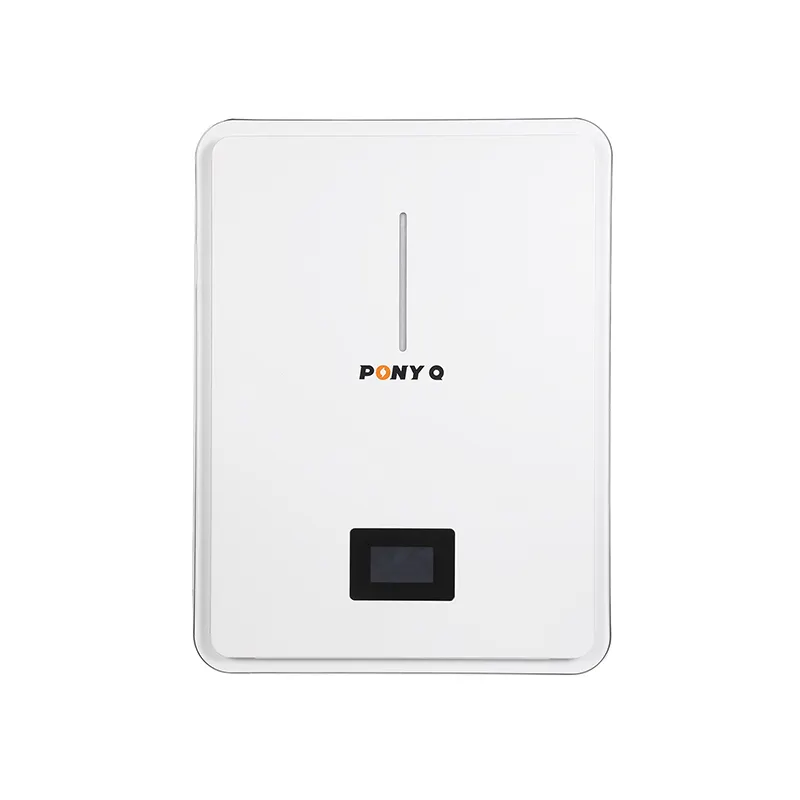

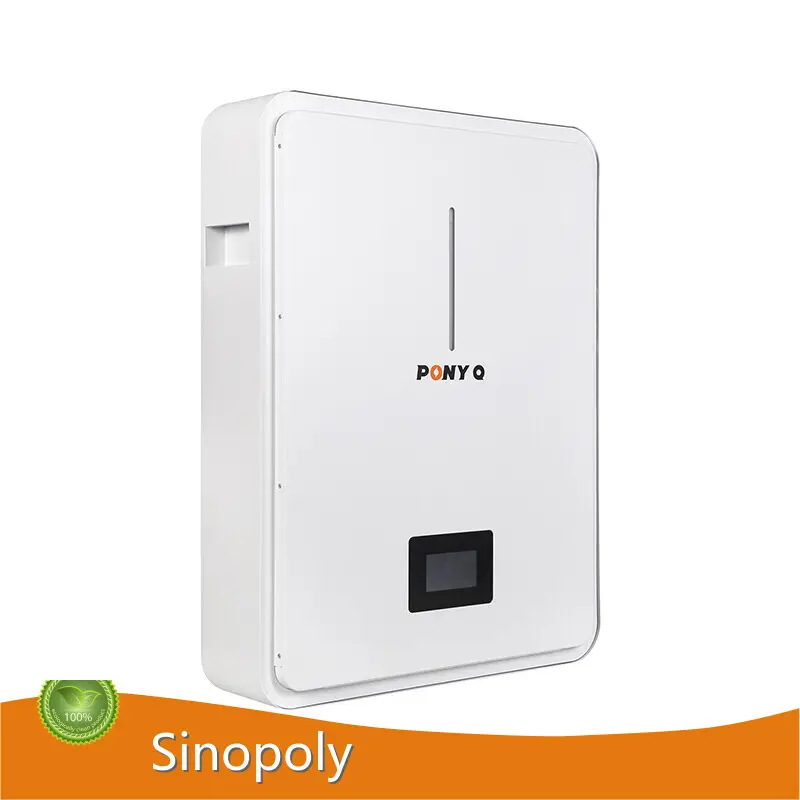

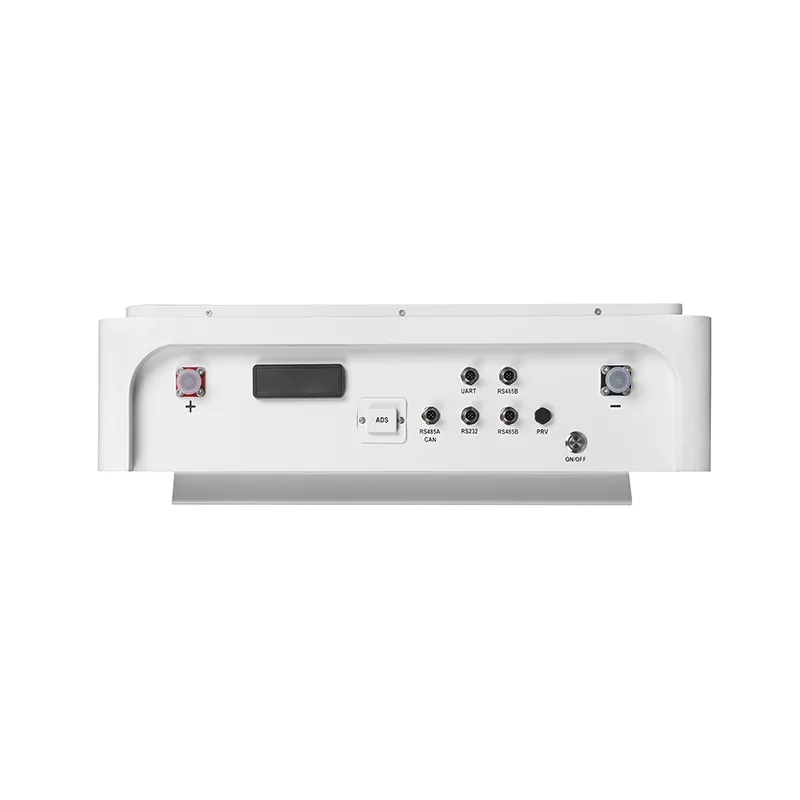

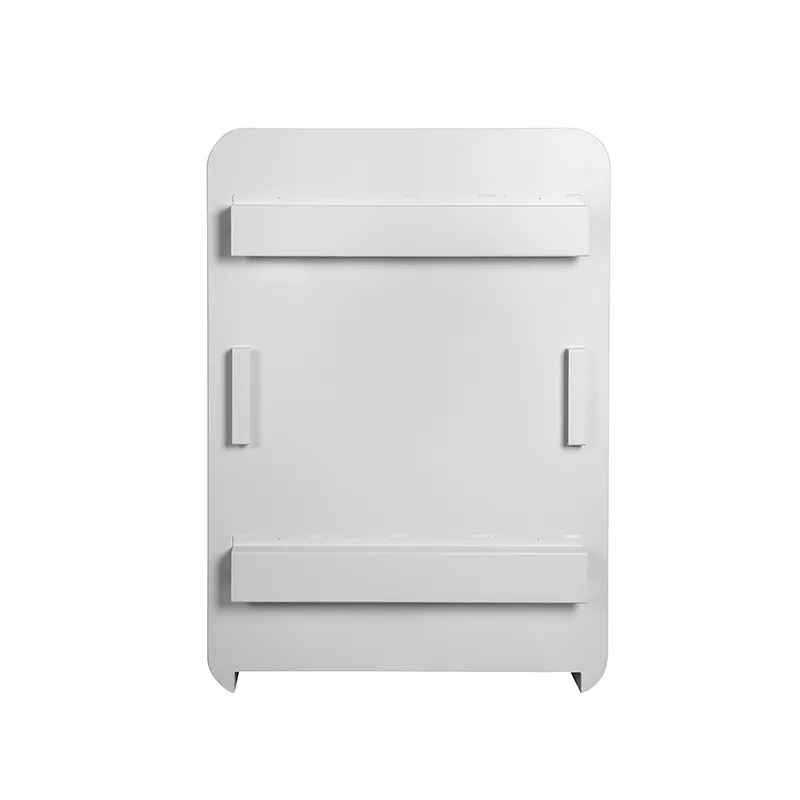

Product Display

壁挂家庭储能7

壁挂家庭储能7 (2)

壁挂家庭储能7 (4)
